Designed for the Orthotist & Prosthetist

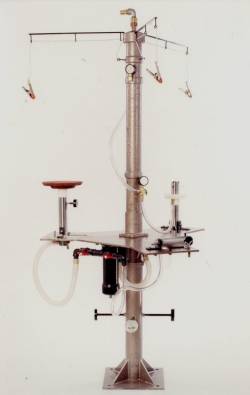

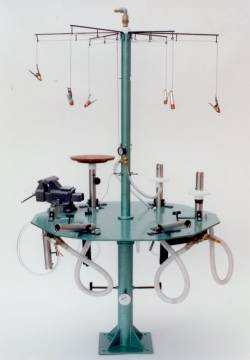

The Table is designed for
the complete fabrication of all orthotic and prosthetic devices. This new equipment
has multiple applications that allows one or more technicians to use it
simultaneously. The Table is composed of 2 to
12 working stations, which rotate 360 degrees without interfering with the vacuum process.
Each station can be utilized in vertical position for lamination and fabrication of thermoplastic sockets (bubble form), in horizontal position each station can modify molds and thermoplastic fabrication, and at intermediate angles for any other applications.
The Table is complemented with an automatic vacuum system which turns on and off by itself at a set range of 15 to 27 inches of mercury. It has a 20 gallon tank and an oil pump which provides quick vacuum recovery of 6 cfm (cubit feet per minute).
I'm looking forward to having the opportunity to introduce The Table to your facility.
Documents are in Adobe PDF format. Download the latest version of Adobe Acrobat Reader, Free!
Click on the document name below to bring up the document in your browser for printing. It's a large file, be patient.
Right-click on the document name below and select, "Save Target As" to save the file for later viewing/printing.
Six Station Table
Three Station Table
Pedro L. Llanes, CP, BOC
President and Founder
Orthotic and Prosthetic Equipment Corp.
For more info call us at
1 (800) 607-7677 or email us at firstname.lastname@example.org
